H-type AI Sorter for Apple
Contact Us
Non-destructive detection
Our proprietary AI data algorithms combined with near-infrared detection enable us to ascertain various fruit metrics.
Module on your demand
Customized modules tailored to create exclusive, high cost-performance smart devices.
Rapid algorithmic modeling
A professional, experienced team provides supportive collaboration.
Gentle handling
Specially designed soft cushioning. We care each of your fruit.
Build for efficiency
Automated system swiftly categorizes citrus fruits, single-lane machine could process up to 3 tons per hour.

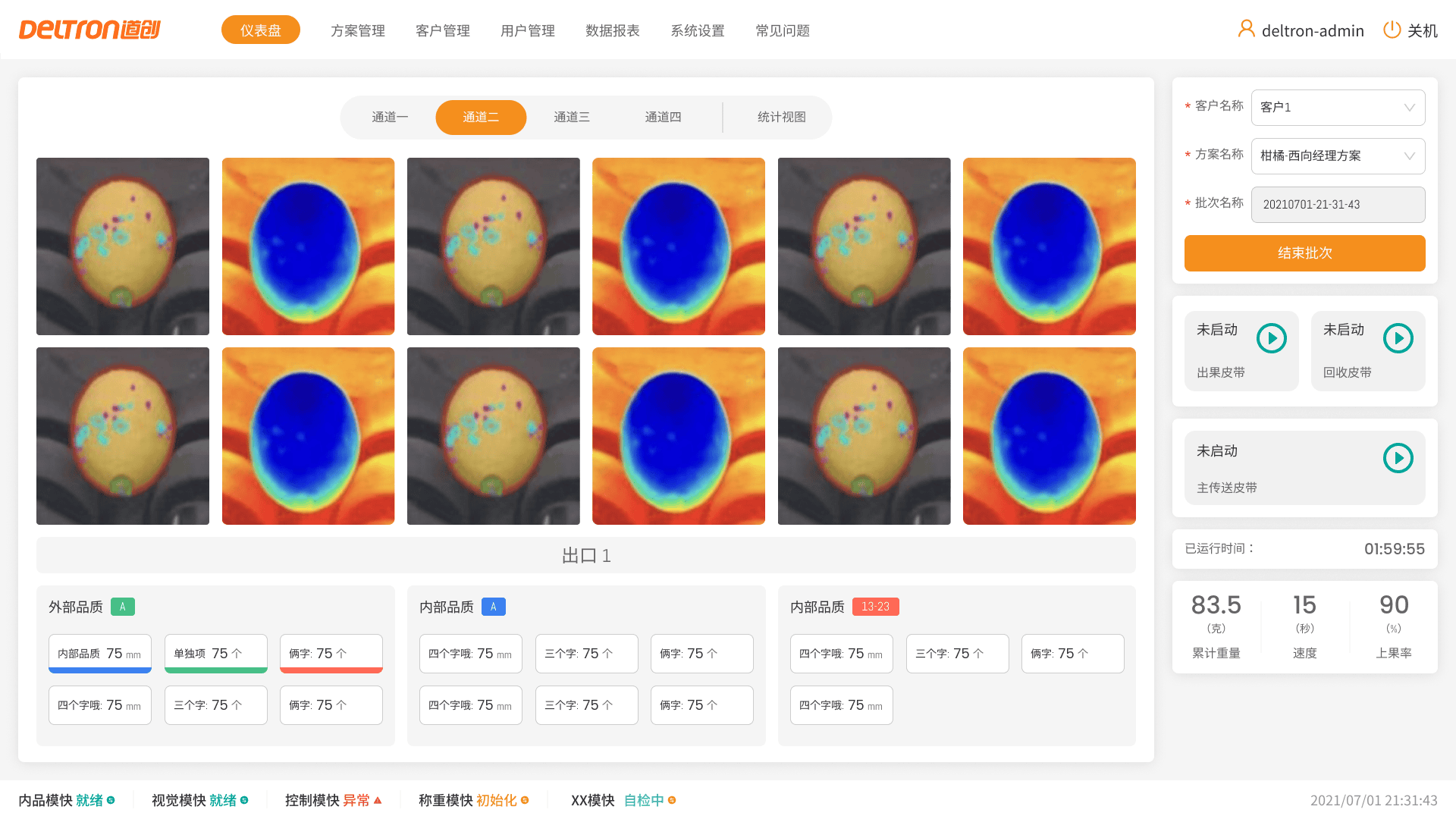

Data analyzing
Sorting data is presented visually, allowing for real-time monitor of on-site conditions.
Precise categorization
for over-red/green
for over-red/green
Analyze the coloration levels
60%
70%
80%
90%
100%60%70%80%90%100%60%70%80%90%100%60%70%80%90%100%Non-destructive detection
of Brix and internal defect
of Brix and internal defect
Weight 385g
Brix 13°
Mould Core 5%

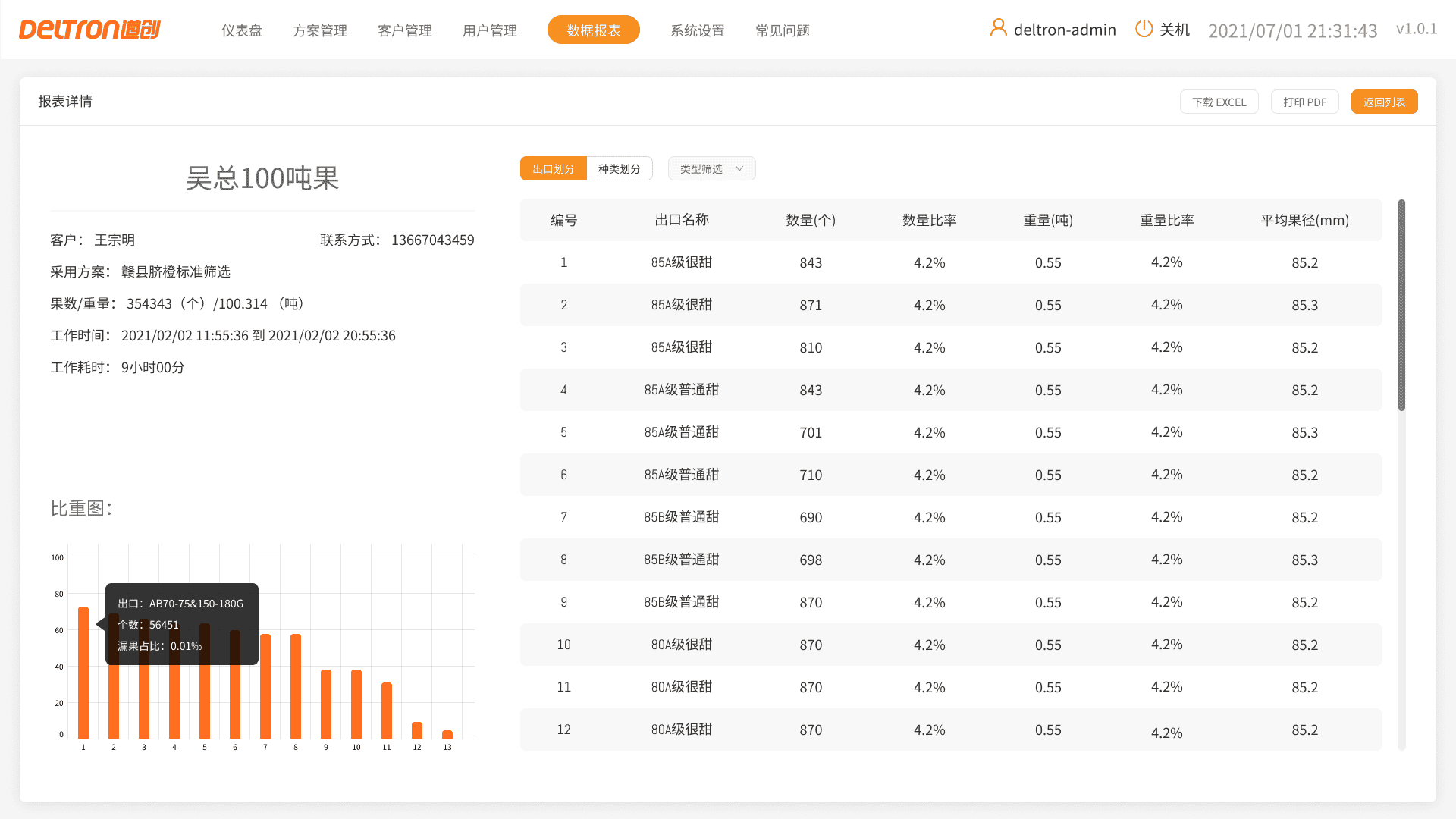

Know more about your production
with data insightBuild your sorting plan in seconds, with cloud-based data analysis
with data insightBuild your sorting plan in seconds, with cloud-based data analysis
Simple, fast, easy to use
Single laneup to 3-5t/h
Weighing accuracy＜±3g
Diameter accuracy＜±2mm
Defects detection accuracy＞90%
Enhance the optimization of the fruit sorting process for superior efficacy.
Specifications and Options
| Length × Width × Height in meters | Total power (kw） | Packing options | Outlet Height (mm） | Rated voltage | Form of outlet | |
|---|---|---|---|---|---|---|
| Single-lane apple sorter | 50*2*2 | 80 | On demand | 400 | AC380v | belt+blush on demand |
| Single-lane apple sorter | ||||||
| Length × Width × Height in meters | 50*2*2 | |||||
| Total power (kw） | 80 | |||||
| Packing options | On demand | |||||
| Outlet Height (mm） | 400 | |||||
| Rated voltage | AC380v | |||||
| Form of outlet | belt+blush on demand |
Customized on Demand
| Module | Function |
|---|---|
| Automatic Box Tipper | Feeding |
| Water-Based Loading | Feeding & Washing |
| Dry-Style Loading | Feeding |
| Waxing & Drying | Preservation |
| Packaging Station | On Demand |
| Empty Box Circulation | For Packaging |
| Box Weighing System | Max Fruit Value |
| Palletizing System | On Demand |
